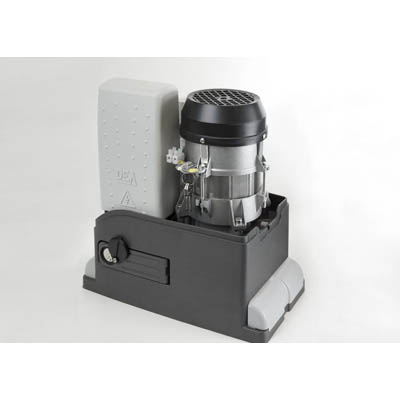

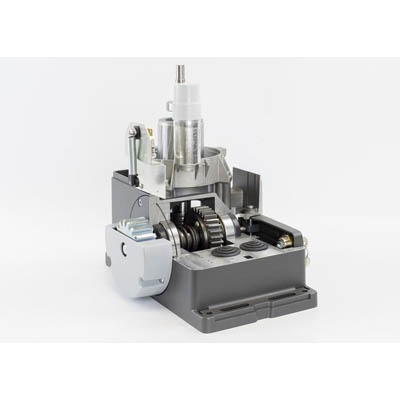

REV 1200 BOOST
The DEA REV series door motors offer high-performance and reliable door automation systems designed for both residential and commercial properties. These motors are equipped with modern technology, incorporating the latest automation innovations to ensure ease of use and longevity.
REV 1200 BOOST
- Bluetooth Communication: Allows for easy programming and updates via the DEA mobile app.
- Remote Control Options: Enables control, adjustment, and maintenance via a smartphone.
- Control Panel: Positioned at the top front, making it always accessible and ideal for small or narrow spaces.
- Additional Fan Ventilation: Available in 230V versions, equipped with a magnetic encoder.
- High-Quality Steel Materials: Ensures long-lasting durability.
- Suitable for High-Density Residential and Industrial Use.
- 24V and 230V Options.
REV 1200 BOOST
- 1200 Kg. FAST Industrial Motor
- REV24/M BOOST (NET24BOOST)
- 1200 KG
- 24V
- FAST
Motor Power Supply (V): 24 V
Maximum Power Consumption (W): 800 W
Maximum Thrust Force (N): 861 N
Cycles/Hour for 8m Leaf: 22 for doors up to 1200 kg
Continuous Operation Cycles/Hour: 60
Operating Temperature (°C): (-20°C) - (50°C)
Motor Thermal Protection (°C): 150°C
Standard Pinion: Z 18
Speed (m/min): 26
Gross Weight (KG): 18 KG
Noise Level dBA: <70
Protection Level: IPX4 (IP44 for models with magnetic contacts (switch))
